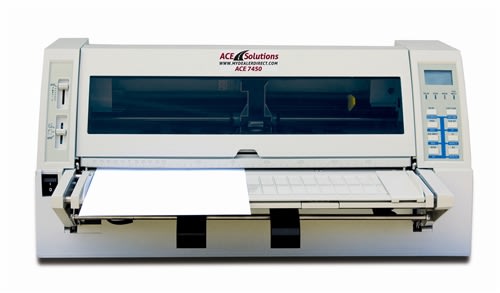

ACE 7450

Print Head Duty Cycle increased by 200 million stroke/pin

Ribbon life increased by 5 million characters

NEW Interfaces: USB, NIC and Serial

7450 Standard Front and rear paper paths, cut sheet

*Denotes model differences from the AMT 7350

Method: Serial Impact dot-matrix, bi-directional and logic seeking
Speed: High Speed Draft 600 cps (15 cpi) High Speed Draft 400 cps (10 cpi) Draft 300 cps (10 cpi) Letter-Quality 150 cps (10 cpi)
Pitches (cpi): 10, 12, 15, 17, 20 24 and Proportional
Line Feed Speed: 6 inches per second
Fonts: High-speed draft, Draft, Roman, Sans Serif, Courier, Prestige, Script, Gothic, OCR-A, OCR-B,Orator and Orator-S
Graphics: Up to 360V x 360H
Print Width: 136 columns (10 cpi)
Printhead: Number of pins 24
Dot Diameter: 0.010 inch (0.25 millimeter)
Head Life: 500 million stroke/pin (Draft)
Operator Panel: Graphic LCD, Paper path lever, Gap adjust lever, 5 User Defined Profiles, Quick Access Setup Menu
Bar Codes: Code 3 of 9, Interleaved 2 of 5, Code 128, UPC-A, UPC-E, EAN-13, EAN-8, Codabar, and POSTNET™
Buffer: 64 K Bytes
Ribbon Life: 20 million characters
Options: Automatic cut sheet feeder, Ethernet interface

Firmware:
Setup For: AutoMate also compatible with Reynolds & Reynolds, docuPad DMV Barcode Forms, Dealertrack, Dealerbuilt, Automate, Autosoft, MPK and
most other Dealership Management Systems

Interfaces: USB, NIC and EIA RS-232-C serial with automatic port switching
Paper Handling: Fanfold paper - front push tractor
Paper: width 8 - 15"
Paper: weight 16 - 24 lbs
Label thickness: .003 - .007"
Fanfold forms: Rear push tractor
Paper width: 8 - 15"
Paper thickness: Original + 6 copies
Cut Sheet: Manual front feed
Paper width: Min 3"- 16.9" max
Paper length: Minimum 7.2"- 37" max
Paper thickness: Original + 6 copies

Physical:
Height 11.6 in. (294 mm)
Width 25 in. (635 mm)
Depth 18.3 in. (465 mm)
Weight 52 lbs. (23.5 kg)
Electrical:
Power 90-130 v 47-63 Hz
Noise:
58 dBA (LQ mode)
Certifications:
UL & C-UL Listed, FCC Class B
MTBF: 10,000 hours @ 25% duty cycle
Warranty: One year ACE Solutions parts and labor, return to Depot Warranty

• Front and rear tractor paths

• Forms on demand

• No forms waste

• Paper out and jam sensing

• Remote paper source selection

Firmware Compatible with: Reynolds & Reynolds, Dealertrack, Dealerbuilt, AutoMate, Autosoft, MPK and many other DMS's
